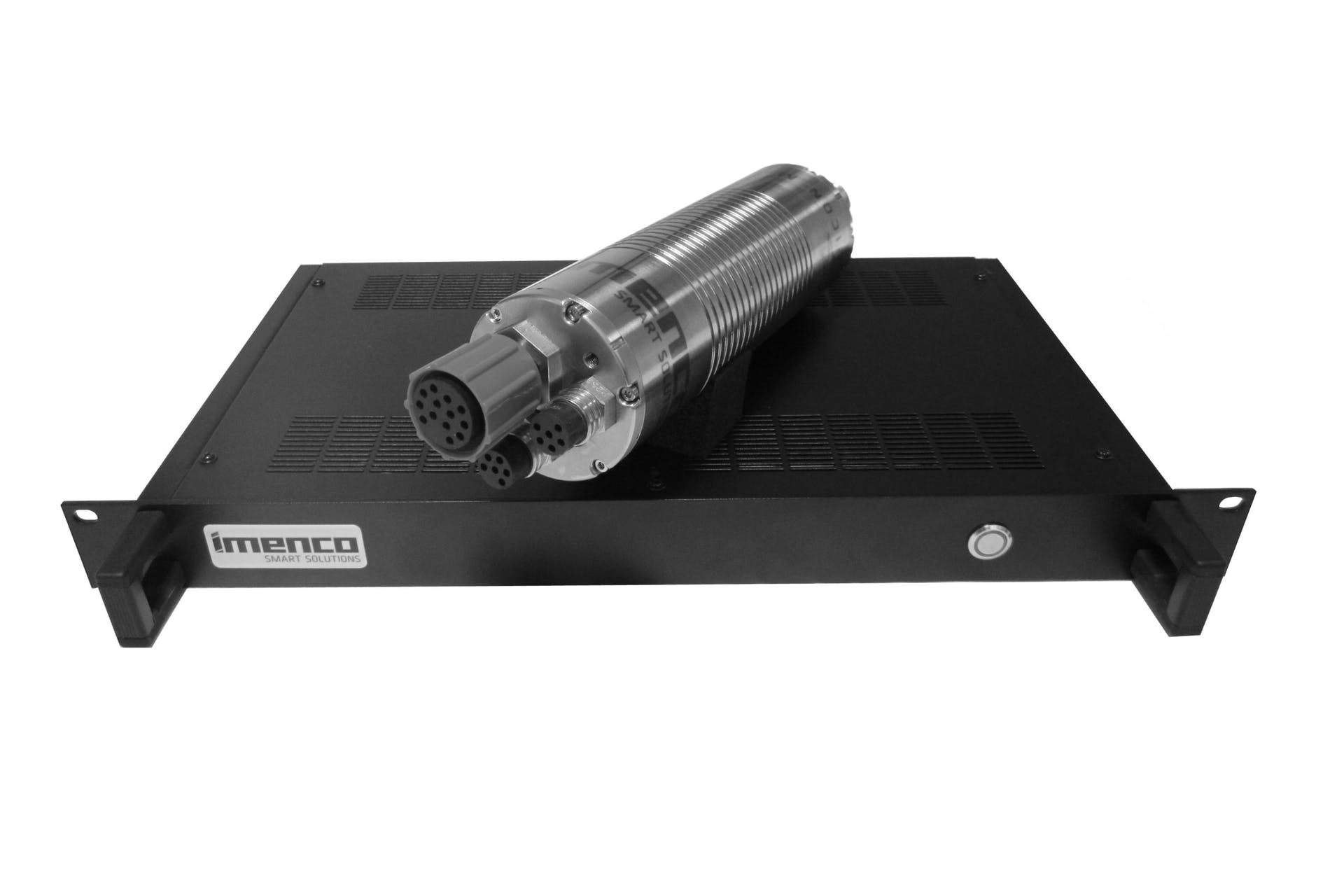

The Imenco ICON Mux makes use of one spare fibre / wave length, in the existing ROV mux / umbilical for transmission of full HD IP video and serial signals for LED lights and Pan & Tilt control, but can be made to other configurations, like 2 x Ethernet.
Streaming / Recording + Snapshot of up to 4-Live HD IP video feeds, controls for LED lights / Laser / P&T Unit can all be per performed within the Imenco SmartView Software.
MORE DETAILS
Subsea Unit
| Transmission format | Single mode fibre, Bi-Directional (BiDi) |
| Optical transmission wave lengths | Customer selectable |
| Camera communication & video interface | Ethernet 100BASE-TX / 1000BASE-T |
| Serial interface option (ICON Mux I) | RS232 |
| Max transmission length | 20 km |
| Fibre connector (standard) | CRE BRA01SM05000LC01 |
| Power connector (standard) | Seacon 5507-1503 |
| Camera connector (standard) | SubConn DBH13F |
| LED light connector 2x (standard) | Seacon MCBH6F |
| Housing material | Titanium |
| Depth rating | 6.000 m |
| Body diameter | 74 mm |
| Length (excl. connector) | 220 mm |
| Power requirements | 24VDC / 2W |
| Mass in air | 2,7 Kg |
| Mass in seawater | 1,6 Kg |
Topside Unit
| Transmission format | Single mode fibre, Bi-Directional |
| Optical transmission wave lengths | Customer selectable |
| Communication & streaming format | Ethernet 100BASE-TX / 1000BASE-T |
| Fibre connector | LC / customer selectable |
| Power input connector | C14 |
| Ethernet connector | RJ45 |
| Housing | 19″ rack – 1U |
| Power requirements | 230VAC / 2 W |
| Camera / Lights / P/T power | External |
