“Tactical Cross Domain Solution for unidirectional or bi-directional Data exchange and filtering for of structured data.“

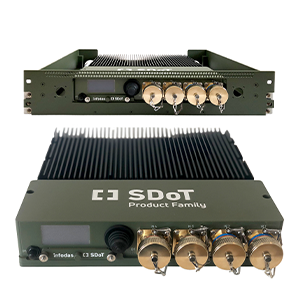

SDoT Security Gateway Express and SDoT Diode are available as COMPACT-LAND (COMP-LAND) optimized for vehicles or weapon systems to withstand extreme environments. Heat, dust, mud or altitude no longer limit digitization of military missions and critical infrastructure (IT/OT).
SDoT COMP-LAND is designed and manufactured in Germany according to the security design principle. The security appliance meets the highest security requirements of the German Federal Office of Information Security (BSI), EU and NATO.
| Security Gateway Express For scenarios that require high-speed, low latency data filtering of structured data objects. | Diode For unidirectional data transfer up to 9.1 Gbit/s. with the lowest possible latency. |
Product Features
| SDoT Security Gateway Express | SDoT Diode | |
| Housing |  | |
| Type | COMP-LAND | |
| Material | Stainless steel, power coated | |
| Measurements | 300 x 300 x 60 mm / 11,81×11,81×2,36” (WxDxH) or 19“, 2U | |
| Weight | Approx. 6.5 kg (14.33 lb) | |
| Data Filtering / Data Leakage Prevention | ||
| Structured Data | Yes | – |
| Existing Parsers | Programmable (e.g. XML, JSON) | – |
| Performance | ||
| Protocols | TCP, UDP, SMTP/S, HTTP/S (more via proxy server) | |
| LAN | Fiber or RJ45 | |
| Energy | Redundant, 12-45 V DC | |
| Cooling | Passive | |
| Other | ||
| Temperature | Optimized for any climate zone | |
| Humidity | Optimized for any climate zone | |
| Dust protection | Yes | |
| Atmospheric pressure | Optimized for various altitudes | |
| Emission protection | Yes | |
| Vibration resistance | Optimized for military vehicles | |
| Shock resistance | Optimized for military vehicles | |
| Fungal resistance | Yes | |
| Standards | CE, ROHS, REACH, ISO 9001, EAL4+ | |
| NATO MCM # | BSI-VSA-10330 | BSI-VSA-10343 |
| Approvals | GEHEIM, NATO SECRET, EU SECRET | |
