HybRED-170/6 170A Sürekli Güç ve 5200A Peak

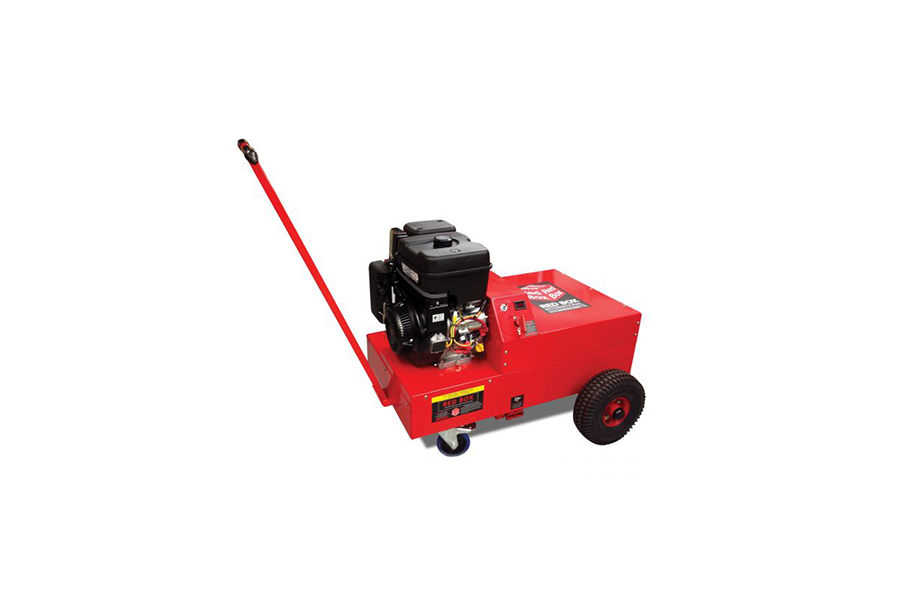

  • This Red Box unit combines a petrol engine with a bank of batteries to o er the slickest combination unit in the world. The weight and size of this unit is unrivalled, making it the obvious choice of Business Jet owners and operators.

    Volts DC28
    Peak Amps5000
    Maximum S/C Amps7800
    Continuous Amps170
    Battery TypeLead Acid
    Weight175 kg


    • Handle and Casters
    • Tow Bar
    • Longer Cable Available


    Continuous Power
    from Engine
    170 amp @ 28.5 V DC
    Max Start Voltage26 V DC
    Voltage IndicationDigital IP65
    Max Amps5000 Nominal short Circuit 4 Cells
    7800 Maximum short Circuit
    Capacity114 Amp Hrs at 10 Hr rate
    Engine Size/Fuel392CC – Unleaded Petrol Engine
    developing 13 HP
    EPA compliant
    Integrated Fuel Filtering
    Engine StartingElectric – Hand Pull Back-up
    Engine Fuel Tank7.9 Litre
    Engine ExhaustSuper Lo Tone System
    Spark Arrestor in Exhaust
    Engine BatterySeparate Insulated 12 V
    Engine ProtectionLow Oil Auto Shutdown
    CoolingFan Cooled
    OperationAll Weather
    Operating Temperature-30° to +40°C
    Dimentions (mm)950 x 550 x 640 High – Main Body
    Weight175 kg
